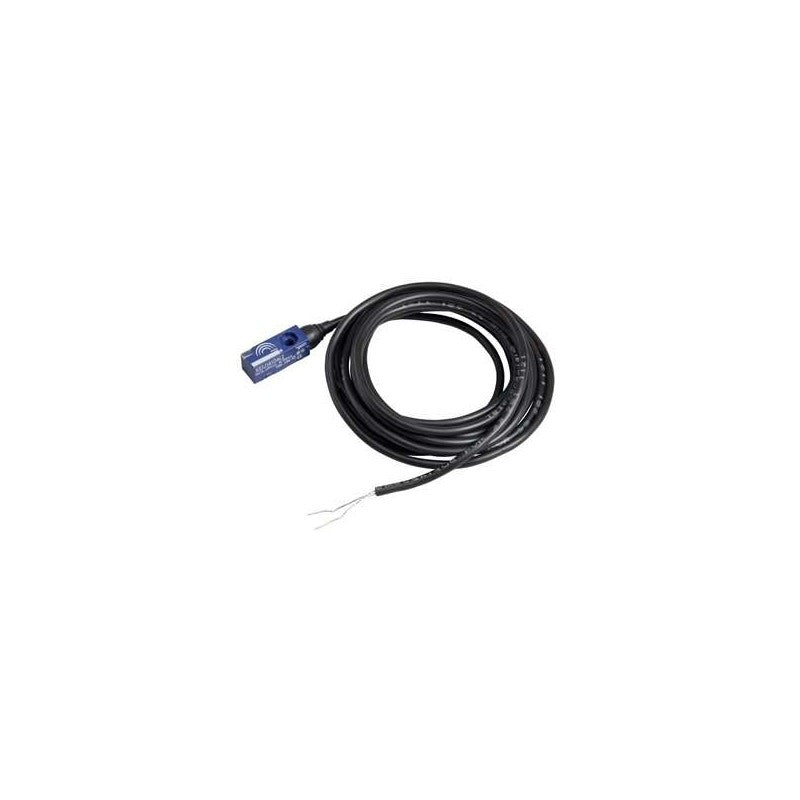

Part of the Schneider Electric XS7 series, this inductive proximity sensor is designed for detecting metallic objects in automated systems. The XS7J1A1PBL5 features a compact rectangular housing and operates on a 12-24VDC power supply, making it suitable for integration into a wide range of control panels and machinery.

Technical details

• Series: XS7
• Sensing Technology: Inductive
• Housing Material: PBT
• Sensing Range (Sn): 2.5 mm
• Operating Voltage: 12-24 VDC
• Output Type: PNP Normally Open (PBL)
• Connection Type: 5-meter cable
• Dimensions: 8 mm x 22 mm x 8 mm

Applications & compatibility

This inductive sensor is commonly employed in applications requiring non-contact detection of metal targets, such as position sensing on robotic arms, presence detection in assembly lines, or end-of-travel confirmation on actuators. Its robust PBT construction and standard voltage range ensure compatibility with most industrial control systems and PLCs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS7J1A1PBL5 or contact our technical team for cross-reference assistance with compatible Schneider Electric XS sensor components.
