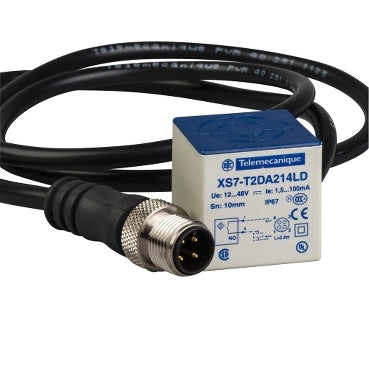

The Schneider Electric XS7T2DA214LD is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS7 series, this sensor features a compact 26x26x26mm cubic form factor, making it suitable for space-constrained applications. It operates within a 12-48VDC voltage range and offers a sensing distance of 10mm.

Technical details

• Series: XS7
• Sensor Type: Inductive Proximity Sensor
• Housing Material: Plastic
• Sensing Distance (Sn): 10mm
• Operating Voltage: 12-48VDC
• Connection Type: M12 connector
• Output Type: Typically PNP Normally Open (NO) or Normally Closed (NC) based on the 'DA' designation in the part number, though confirmation via datasheet is recommended.
• Dimensions: 26 x 26 x 26 mm

Applications & compatibility

This inductive sensor is commonly employed in manufacturing environments for presence detection on assembly lines, material handling systems, and machine tool applications. Its robust plastic housing and standard M12 connection ensure compatibility with a wide range of industrial control panels and automation equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS7T2DA214LD or contact our technical team for cross-reference assistance with compatible Schneider Electric sensor components.
