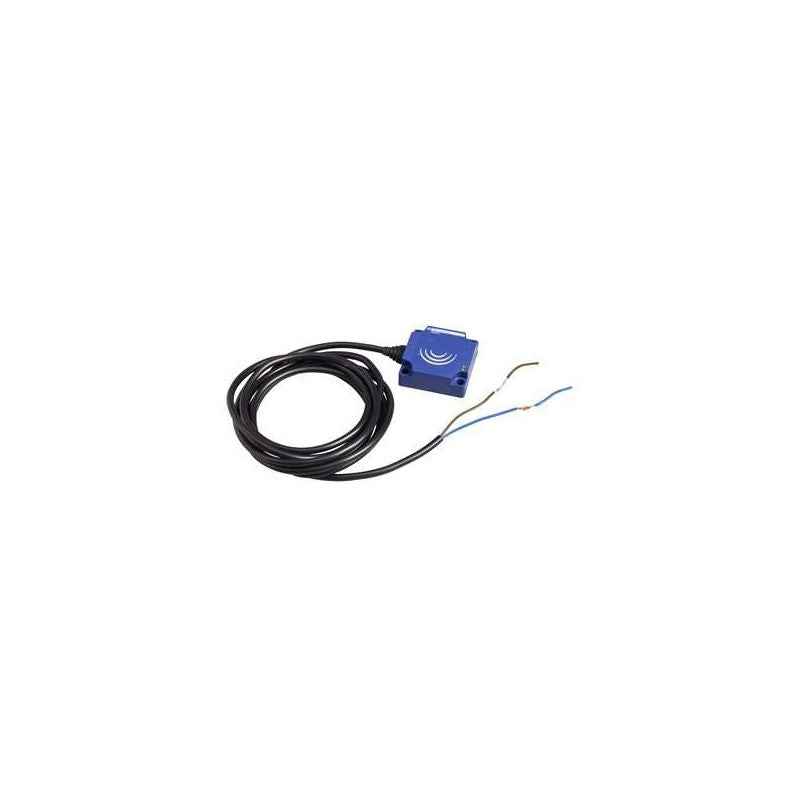

The Schneider Electric XS8C1A1MBL5 is an inductive proximity sensor designed for detecting metallic objects in automated systems. This sensor is part of the XS8 series, known for its robust construction and reliable performance in demanding industrial environments. It features a PBT housing and a sensing face that provides a nominal sensing distance of 25mm, making it suitable for a wide range of detection tasks on production lines.

Technical details

• Series: XS8
• Sensing Technology: Inductive Proximity
• Housing Material: PBT (Polybutylene Terephthalate)
• Nominal Sensing Distance (Sn): 25 mm
• Operating Voltage: 24...240 VAC/DC
• Output Type: Typically a 2-wire AC/DC output, compatible with PLC inputs. Specific output configuration (e.g., NO/NC) should be verified against the datasheet.
• Connection: 5-meter pre-wired cable
• Dimensions: 40 x 40 x 15 mm (face dimensions)

Applications & compatibility

This XS8 series inductive sensor is commonly employed in machine building and automation for presence detection of metallic parts. Applications include integration into control systems for packaging machinery, material handling equipment, assembly lines, and general automation tasks where non-contact detection of metal is required. Its wide voltage range makes it adaptable to various power configurations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS8C1A1MBL5 or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
