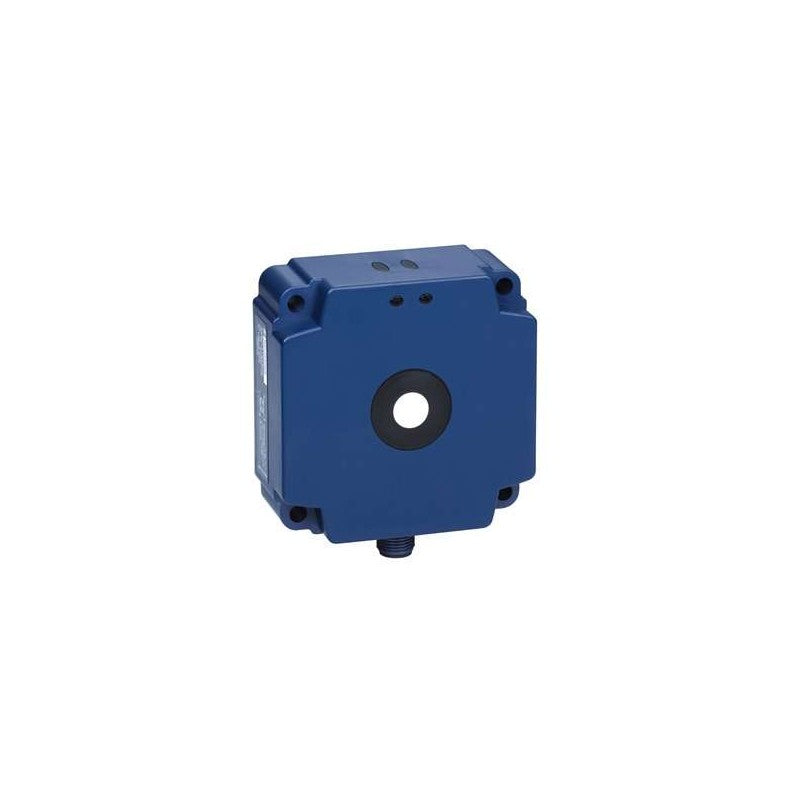

The Schneider Electric XX9D1A1F1M12 is an ultrasonic sensor designed for precise distance measurement in industrial environments. This sensor, part of the Schneider Electric XX series, features a sensing range of 1 meter and outputs a 0-10 V analog signal, making it suitable for integration into various control systems requiring continuous analog feedback.

Technical details

• Sensor Type: Ultrasonic
• Sensing Range: 1 meter (Sn 1 m)
• Output Signal: 0-10 V analog
• Connector Type: M12
• Housing Dimensions: 80x80 mm
• Operating Principle: Time-of-flight measurement of sound waves
• Enclosure Rating: Typically IP67 or higher for industrial environments (verify with datasheet)
• Response Time: Varies based on sensing distance and application requirements (verify with datasheet)

Applications & compatibility

This ultrasonic sensor is commonly employed in applications such as level monitoring for liquids or solids, presence detection of objects, and automated positioning systems. Its analog output makes it compatible with PLCs, data acquisition systems, and other control hardware that accepts 0-10 V input signals, often found in material handling, packaging machinery, and process control applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XX9D1A1F1M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric sensor components.
