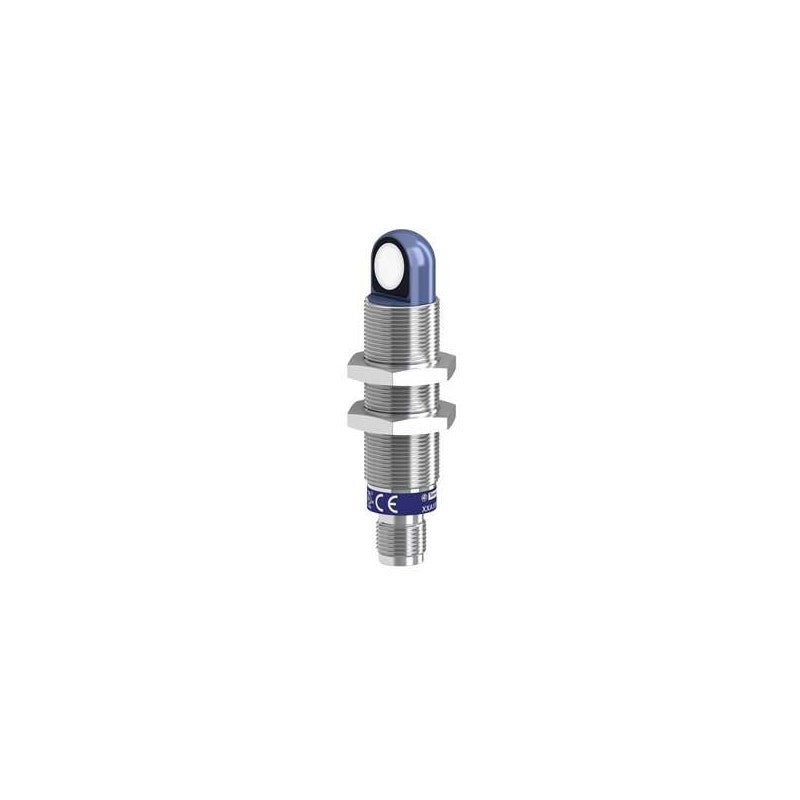

Part of the Schneider Electric XXA series, this cylindrical ultrasonic sensor is designed for precise distance measurement in automated systems. Featuring a 90-degree sensing head and an M18 threaded housing, it integrates seamlessly into machine frameworks. The sensor provides an analog output signal, enabling continuous monitoring of object presence and position.

Technical details

• Series: XXA
• Model Designation: XXA18B1VM12
• Sensing Technology: Ultrasonic
• Sensing Range: 1 meter (Sn=1m)
• Output Type: Analog voltage (0-10V)
• Output Configuration: SYNC (Synchronization)
• Connection Type: M12 connector
• Housing Style: Cylindrical, M18 thread

Applications & compatibility

This ultrasonic sensor is suitable for applications requiring non-contact detection and precise positioning, such as in material handling, robotics, and automated assembly lines. Its analog output makes it compatible with PLC analog input modules and other control systems that require variable feedback for process control.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XXA18B1VM12 or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
