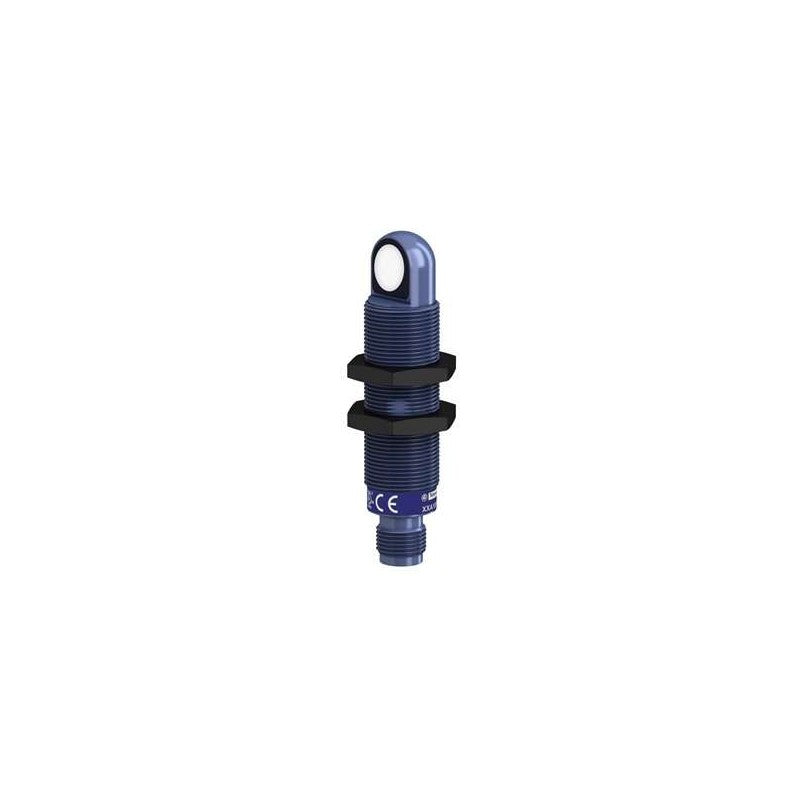

The Schneider Electric XXA18P1AM12 is an ultrasonic sensor designed for precise distance measurement in industrial environments. As part of the XXA series, this cylindrical sensor features a 90-degree sensing head and an M18 threaded body for straightforward mounting. It provides analog output signals, making it suitable for integration into control systems requiring continuous feedback on object presence or position.

Technical details

• Series: XXA
• Sensing Technology: Ultrasonic
• Housing Style: Cylindrical
• Mounting Thread Size: M18
• Maximum Sensing Distance (Sn): 1 meter
• Output Type: Analog 4-20mA
• Synchronization Feature: SYNC
• Connector Type: M12

Applications & compatibility

This ultrasonic sensor is commonly employed in applications such as automated material handling, level monitoring in tanks, and presence detection on conveyor systems. Its analog output is compatible with a wide range of PLCs, data acquisition systems, and motor drives that accept 4-20mA input signals for process control and automation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XXA18P1AM12 or contact our technical team for cross-reference assistance with compatible XXA series components.
