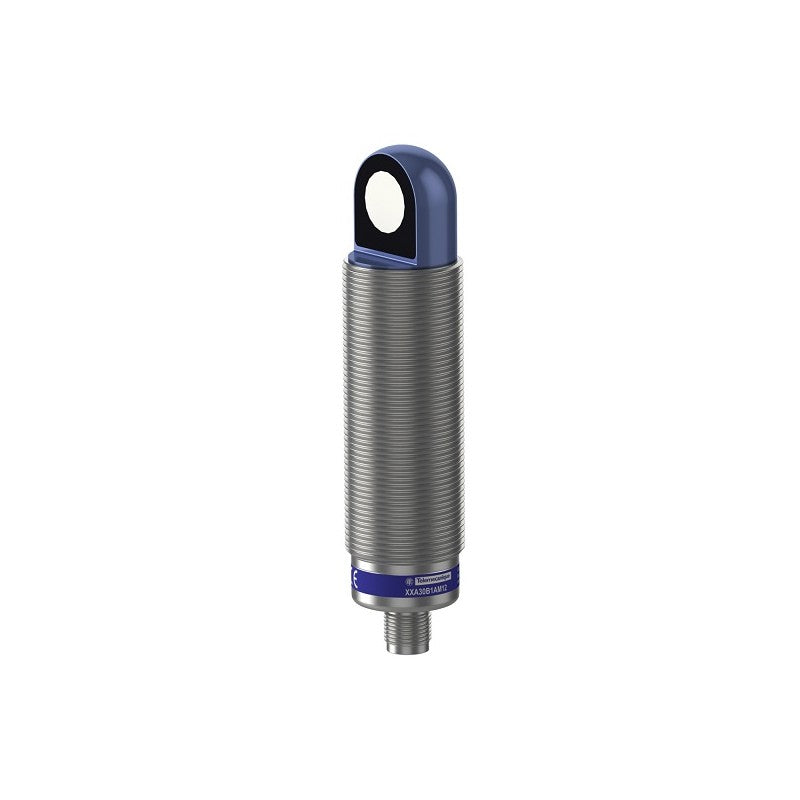

The Schneider Electric XXA30B1AM12 is a cylindrical M30 ultrasonic sensor designed for precise distance measurement in industrial environments. This sensor operates within the XXA series, a line known for its robust construction and reliable performance in demanding applications. Its angled sensing head facilitates installation in confined spaces or where direct axial alignment is not feasible.

Technical details

• Sensor Type: Ultrasonic
• Housing Material: Metal
• Form Factor: Cylindrical M30
• Sensing Configuration: Angled
• Output Signal: 4...20 mA analog current output
• Sensing Range: Up to 1 meter
• Operating Voltage: Typically 24 VDC (verify against datasheet for exact range)
• Connection Type: M12 connector (verify pinout and configuration against datasheet)

Applications & compatibility

This ultrasonic sensor is well-suited for applications requiring non-contact detection and precise distance monitoring. Common uses include level sensing in tanks, object detection on conveyor systems, and position feedback in automated machinery. Its analog output makes it compatible with a wide range of PLCs, HMIs, and data acquisition systems that accept 4-20 mA inputs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XXA30B1AM12 or contact our technical team for cross-reference assistance with compatible Schneider Electric XXA series components.
