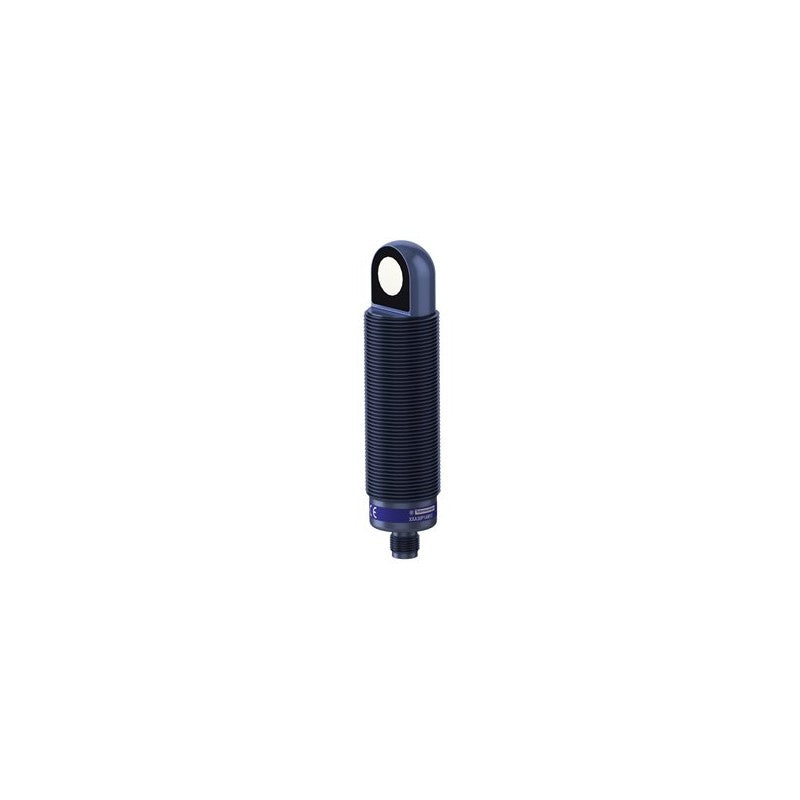

The Schneider Electric XXA30P1AM12 is an ultrasonic sensor designed for precise distance measurement in industrial environments. As part of the XXA series, this sensor features a cylindrical M30 plastic housing and an angled sensing head, facilitating installation in confined spaces or specific orientations. Its output signal is a 4...20 mA analog current loop, commonly utilized for transmitting measured distance data to control systems.

Technical details

• Sensor Type: Ultrasonic
• Housing Material: Plastic
• Housing Form Factor: Cylindrical M30
• Sensing Head Orientation: Angled
• Sensing Range: 1 meter (maximum)
• Output Signal: 4...20 mA analog current
• Operating Voltage: Typically 24 VDC (verify with manufacturer datasheet for specific model requirements)
• Connection Type: M12 connector (standard for this series, verify pinout with datasheet)

Applications & compatibility

This ultrasonic sensor is well-suited for applications requiring non-contact detection and measurement of object presence or distance. Common uses include level monitoring in tanks, collision avoidance systems on automated guided vehicles (AGVs), material handling on conveyor lines, and presence detection in packaging machinery. The 4...20 mA output ensures compatibility with a wide range of PLCs, HMIs, and data acquisition systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XXA30P1AM12 or contact our technical team for cross-reference assistance with compatible Schneider Electric sensor components.
