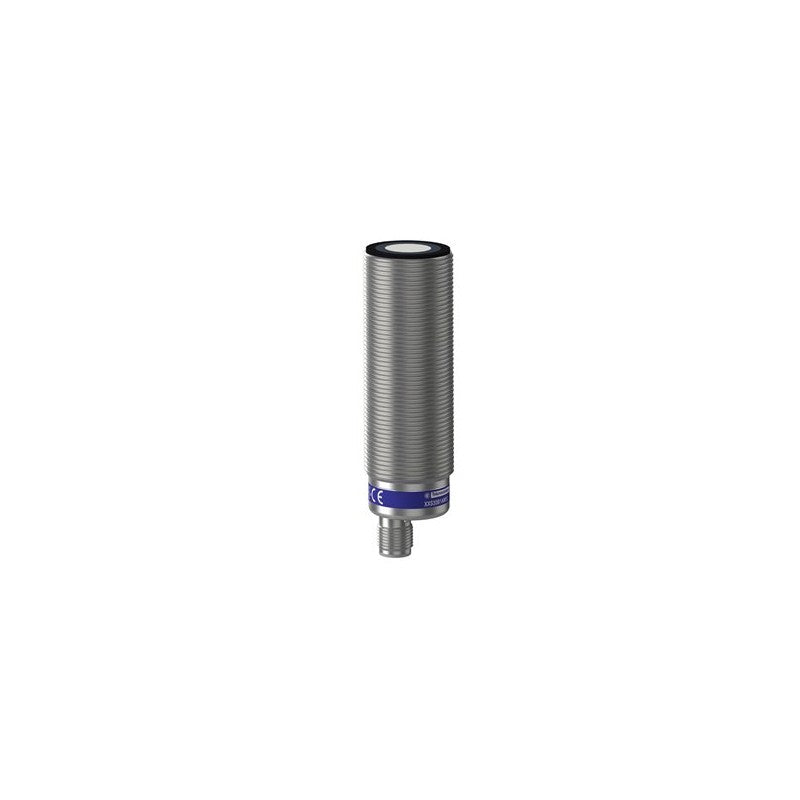

The Schneider Electric XXS30B1AM12 is a cylindrical M30 ultrasonic sensor designed for precise distance detection in industrial environments. This straight-body sensor operates within the XXS series, a line known for its robust construction and reliable performance in demanding applications. Its metal housing ensures durability, making it suitable for integration into automated machinery and process control systems.

Technical details

• Series: XXS
• Sensing Technology: Ultrasonic
• Housing Material: Metal
• Form Factor: Cylindrical M30
• Output Type: 4...20 mA analog current output
• Sensing Range: Up to 1 meter (1000 mm)
• Connection Type: M12 connector
• Cable Length: 1 meter

Applications & compatibility

This ultrasonic sensor is commonly employed in applications requiring non-contact object detection and precise measurement, such as level monitoring in tanks, presence detection on conveyor systems, and collision avoidance in robotic work cells. Its 4-20 mA output makes it compatible with a wide range of PLCs, data acquisition systems, and industrial controllers that accept analog current inputs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XXS30B1AM12 or contact our technical team for cross-reference assistance with compatible XXS series components.
