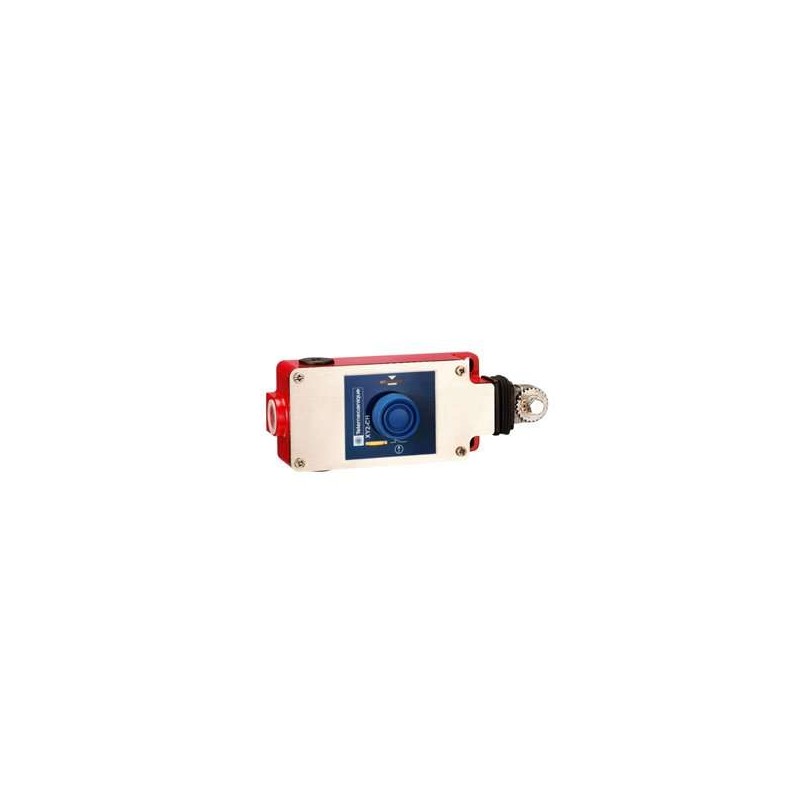

The Schneider Electric XY2CH14290H7 is an emergency stop rope pull switch from the XY2CH series, designed for immediate machine shutdown in industrial environments. This unit features a configuration of 2 Normally Closed (NC) and 1 Normally Open (NO) contact arrangement, providing versatile safety interlocking capabilities. It also includes a booted pushbutton for enhanced protection against dust and moisture ingress.

Technical details

• Series: XY2CH
• Contact Configuration: 2NC + 1NO
• Actuator Type: Rope pull switch with booted pushbutton
• Enclosure Rating: Booted pushbutton indicates protection against environmental contaminants; specific IP rating should be verified against manufacturer datasheet.
• Switching Capacity: Contact ratings (voltage and current) should be verified against the manufacturer's datasheet for specific application suitability.
• Operating Temperature Range: Specific temperature limits are not determinable from the part number and should be confirmed with the manufacturer's documentation.
• Mounting Type: Typically panel mount or surface mount; refer to manufacturer specifications for precise mounting details.
• Reset Mechanism: Standard manual reset via rope pull or pushbutton; specific reset functionality should be confirmed.

Applications & compatibility

This emergency stop rope pull switch is commonly deployed on long conveyor systems, large machinery, and in areas where immediate stop access is critical across a wide operational span. It is suitable for integration into safety circuits for packaging lines, material handling equipment, and manufacturing assembly lines requiring robust emergency stop functionality.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XY2CH14290H7 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
