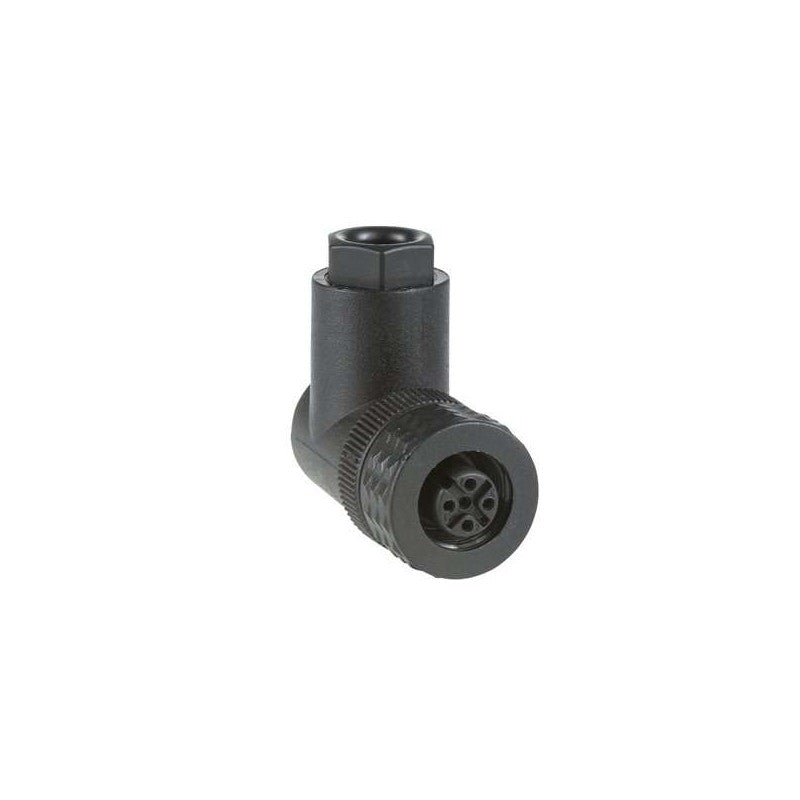

Schneider Electric's XZCC12FCP40B is a female M12 connector designed for robust industrial connectivity. This elbowed connector features a 4-pin configuration and a Pg 7 cable gland, making it suitable for secure cable termination in demanding environments. It is commonly integrated into control systems and sensor networks within manufacturing automation.

Technical details

• Connector Type: Female M12
• Pin Configuration: 4-pin
• Housing Style: Elbowed (90-degree)
• Cable Gland Size: Pg 7
• Series: XZCC (Schneider Electric's range of industrial connectors)
• Contact Material: Typically brass with nickel plating for durability and conductivity (verify with datasheet)
• Housing Material: Often made of PBT or similar robust plastic for chemical and impact resistance (verify with datasheet)
• Environmental Rating: Typically IP67 or IP69K for dust and water ingress protection when properly mated and terminated (verify with datasheet)

Applications & compatibility

This M12 connector is widely utilized in applications requiring reliable signal and power transmission for sensors, actuators, and control devices. It is commonly found in automated machinery, robotics, packaging equipment, and process control systems where environmental protection and secure connections are paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCC12FCP40B or contact our technical team for cross-reference assistance with compatible Schneider Electric connectivity solutions.
