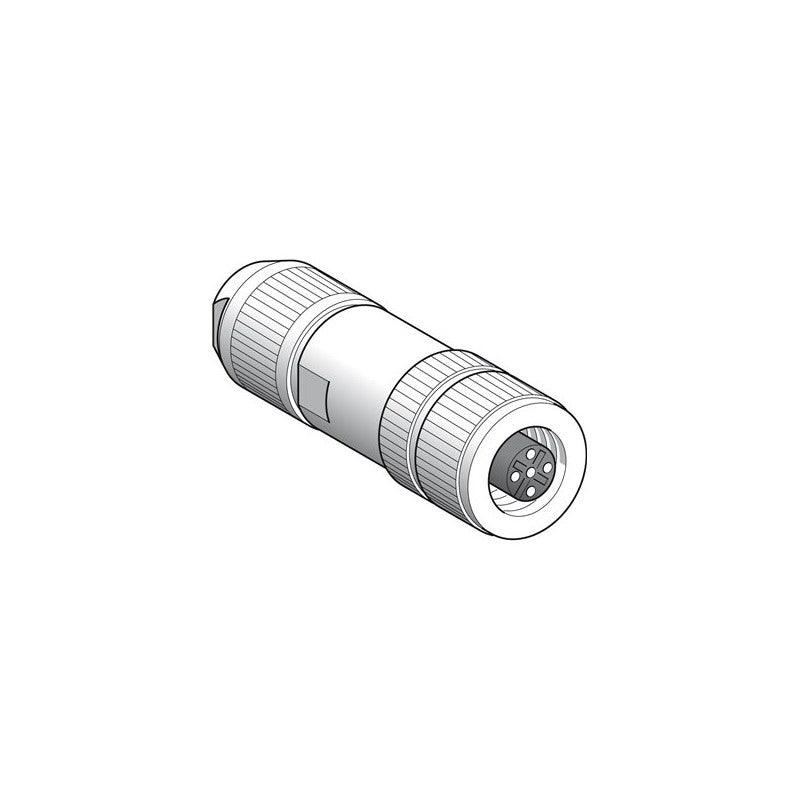

Schneider Electric's XZCC series offers robust connectivity solutions for demanding industrial environments. This M12 connector, specifically the XZCC12FDB50R model, is designed for reliable data and power transmission in automation systems. Its shielded construction ensures signal integrity in electrically noisy settings, making it suitable for applications requiring dependable communication.

Technical details

• Connector Type: Female Straight
• Connector Size: M12
• Number of Pins: 5-pin
• Shielding: Shielded
• Series: XZCC
• Termination Style: Field-attachable (implied by 'connector' and common M12 design)
• Contact Material: Likely brass with nickel plating or similar industrial standard (verify with datasheet)
• Housing Material: Likely PVC or PUR for industrial durability (verify with datasheet)
• Operating Voltage: Typically rated for 60V DC or 250V AC depending on specific pin configuration and application (verify with datasheet)
• Current Rating: Typically rated for 4A per pin (verify with datasheet)

Applications & compatibility

This M12 connector is commonly employed in sensor and actuator connections within industrial automation networks. It is ideal for use on packaging machinery, robotic arms, conveyor systems, and process control equipment where reliable, protected connections are essential for operational continuity.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCC12FDB50R or contact our technical team for cross-reference assistance with compatible Schneider Electric sensor and actuator components.
