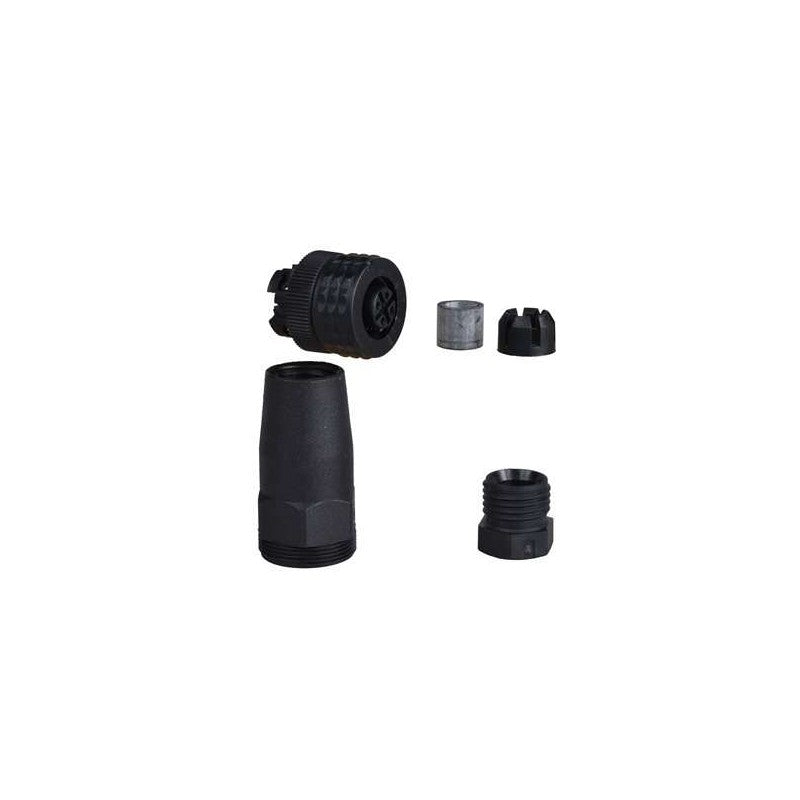

Schneider Electric's XZCC series offers robust connectivity solutions for industrial automation. This M12, 4-pin, straight female connector, designated by the part number XZCC12FDP40B, is designed for reliable data and power transmission in demanding environments. Its integrated cable gland with Pg 7 thread ensures secure cable termination, preventing strain and maintaining signal integrity.

Technical details

• Connector Type: Female
• Connector Standard: M12
• Number of Pins: 4-pin
• Orientation: Straight
• Cable Gland Size: Pg 7
• Series: XZCC
• Contact Material: Typically gold-plated brass for corrosion resistance and optimal conductivity (verify with datasheet)
• Housing Material: Typically PBT or similar robust plastic for durability (verify with datasheet)
• Operating Temperature Range: Typically -25°C to +85°C (verify with datasheet)

Applications & compatibility

This M12 connector is commonly employed in sensor and actuator connections within machine building, process control, and factory automation systems. It is suitable for applications requiring a secure, environmentally sealed connection, such as on packaging machinery, robotic cells, and conveyor systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCC12FDP40B or contact our technical team for cross-reference assistance with compatible Schneider Electric XZCC components.
