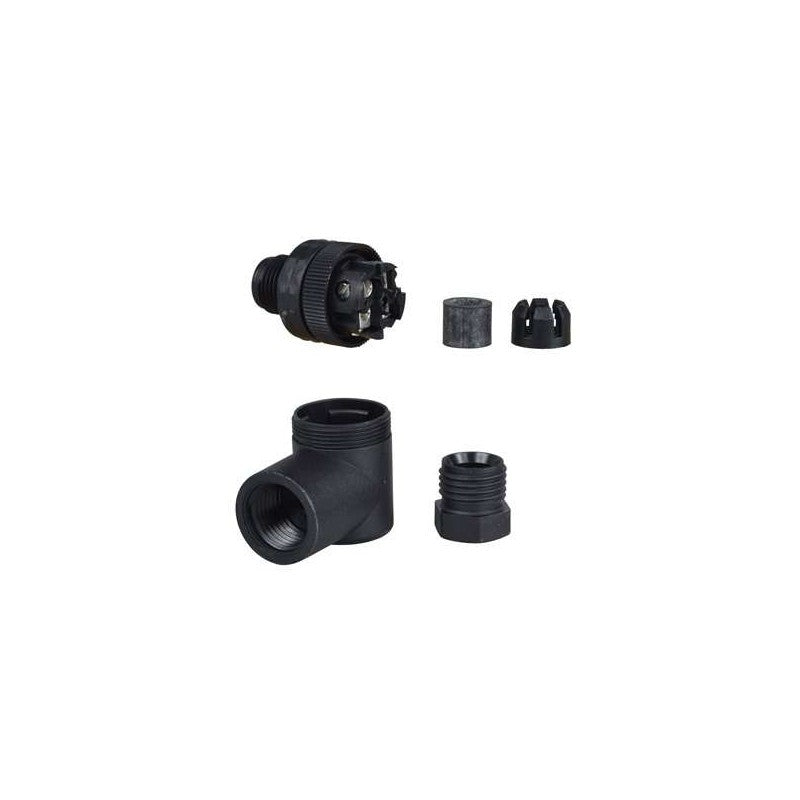

This Schneider Electric XZCC12MCP40B is a male M12 connector designed for robust industrial connectivity. Featuring a 4-pin configuration and an elbowed form factor, this connector is suitable for applications requiring a compact and protected cable entry. The integrated cable gland with Pg 7 thread ensures secure and strain-relieved cable termination, commonly found in sensor and actuator connections within automated systems.

Technical details

• Connector Type: M12 Male
• Pin Configuration: 4-Pin
• Form Factor: Elbowed (90-degree)
• Cable Gland Size: Pg 7
• Housing Material: Typically robust industrial-grade plastic or metal (verify with datasheet)
• Environmental Rating: Typically IP67 or IP69K for dust and water ingress protection (verify with datasheet)
• Operating Temperature Range: Varies by specific model and materials (verify with datasheet)
• Connection Method: Screw terminals or solder (verify with datasheet)

Applications & compatibility

The XZCC12MCP40B is commonly employed in industrial automation environments for connecting sensors, actuators, and control devices. Its M12 interface ensures compatibility with a wide range of automation equipment, including PLCs, HMIs, and industrial cameras. Applications include machine tool connectivity, robotic cells, and process control systems where reliable signal transmission is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCC12MCP40B or contact our technical team for cross-reference assistance with compatible M12 connection solutions.
