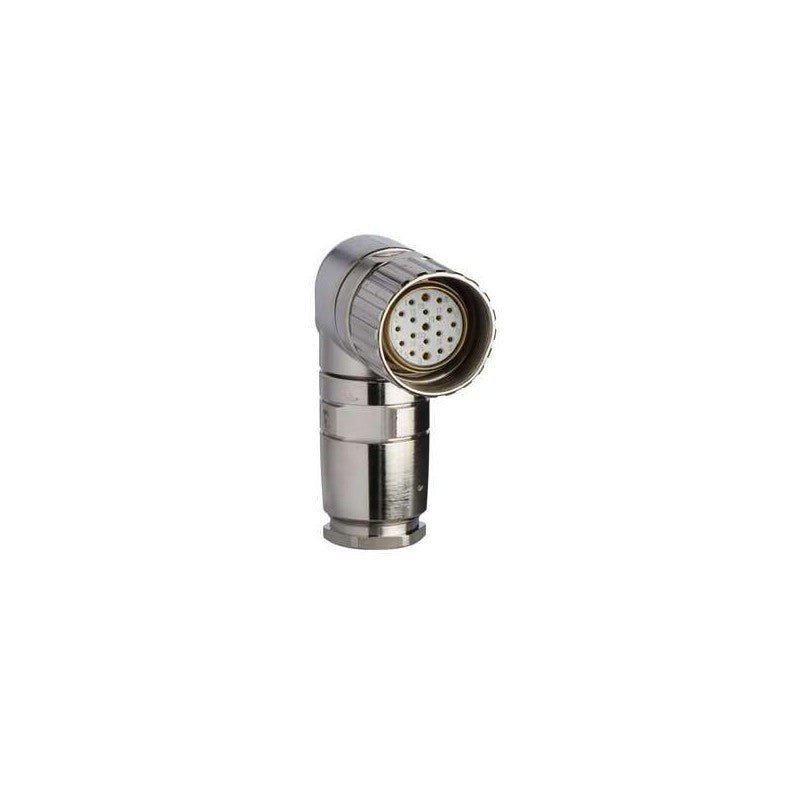

This Schneider Electric XZCC23FCM190S is a female M23 connector designed for robust industrial applications. Featuring a 19-pin configuration and an elbowed form factor, this connector facilitates efficient cable management in confined spaces. It is equipped with a cable gland for secure cable entry, specifically sized for Pg 13.5 fittings, ensuring a reliable connection in demanding environments.

Technical details

• Connector Type: Female M23
• Pin Configuration: 19-pin
• Form Factor: Elbowed (90-degree)
• Cable Gland Size: Pg 13.5
• Housing Material: Typically robust industrial-grade plastic or metal alloy for durability.
• Termination Style: Solder or Crimp (verify with datasheet for specific model).
• Environmental Rating: Designed for industrial environments, often with IP67 or IP68 sealing capabilities when properly mated and installed.
• Voltage/Current Rating: Specific ratings are not determinable from the part number alone and must be verified against the manufacturer's datasheet.

Applications & compatibility

The XZCC23FCM190S connector is commonly employed in automation systems requiring high-density signal and power transmission. Its elbowed design is particularly useful in control cabinets, robotics, and machinery where space is at a premium, such as on packaging lines, CNC machinery, or within complex sensor networks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCC23FCM190S or contact our technical team for cross-reference assistance with compatible M23 connector solutions.
