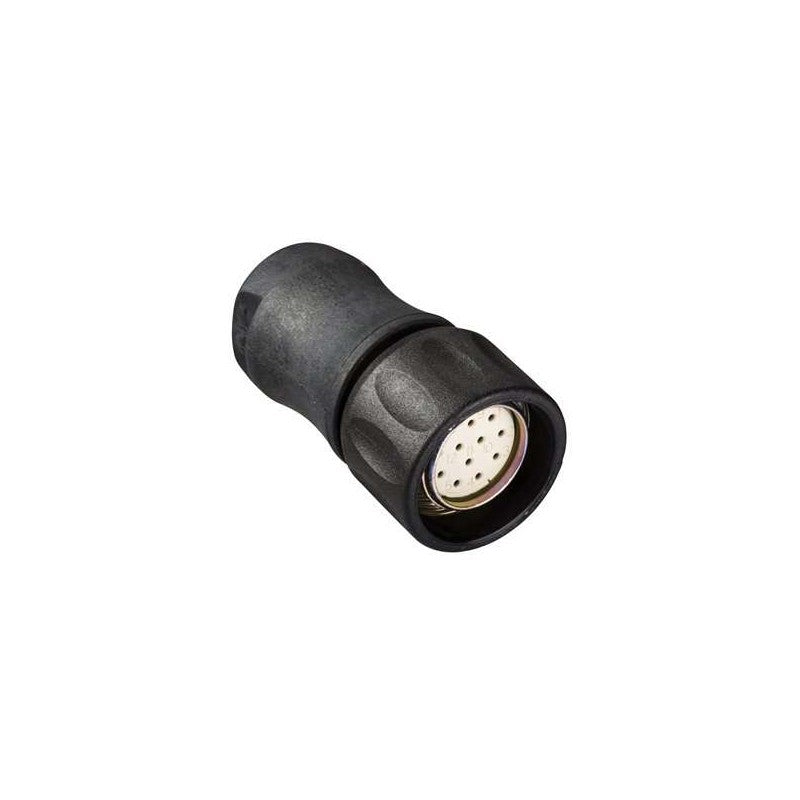

This Schneider Electric M23 connector is designed for encoder feedback applications, commonly integrated into servo drive systems and automated machinery. The XZCC23FDP120S features a straight, female configuration with 12 pins, facilitating robust signal transmission for precise motion control. Its M23 interface ensures secure and reliable connections in demanding industrial environments.

Technical details

• Connector Series: M23
• Connector Type: Female, Straight
• Number of Pins: 12-pin
• Application: Encoder feedback
• Housing Material: Typically metal alloy for durability (verify with datasheet)
• Environmental Rating: Often IP67 or higher for dust and water resistance (verify with datasheet)
• Termination Style: Solder or crimp contacts (verify with datasheet)
• Voltage/Current Rating: Specific ratings depend on the encoder and drive system; consult manufacturer datasheet for precise specifications.

Applications & compatibility

This 12-pin M23 female connector is essential for connecting encoders to servo drives and motor controllers in a wide range of automated systems. It is frequently found in applications such as CNC machining centers, robotic arms, packaging equipment, and high-precision assembly lines where accurate position feedback is critical for performance and safety.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCC23FDP120S or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder interface components.
