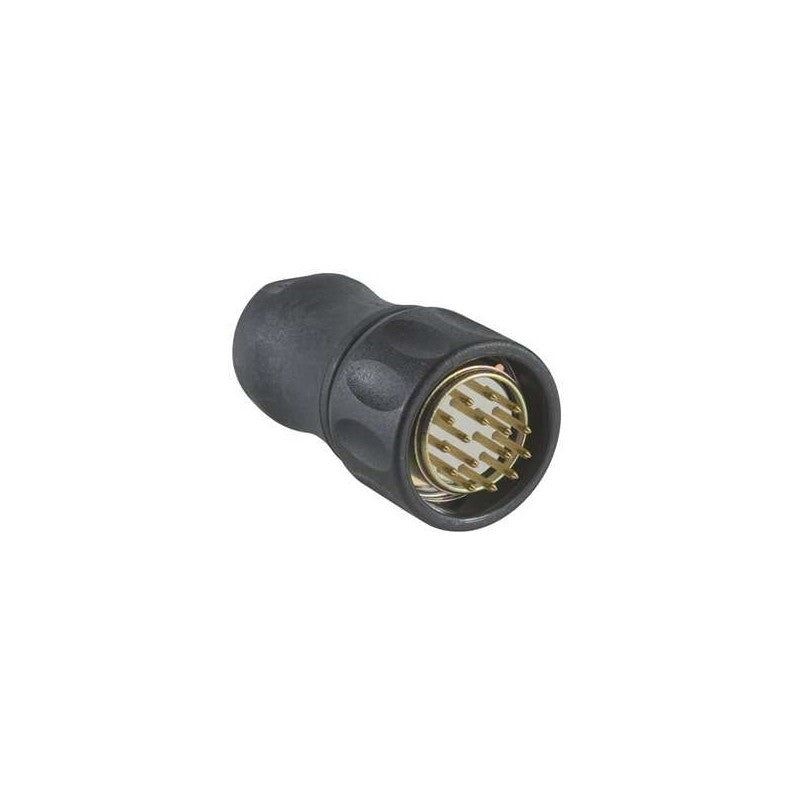

Designed for encoder feedback systems, the Schneider Electric XZCC23FDP160S is a straight M23 connector. This female connector features 16 pins, making it suitable for high-density signal transmission in demanding industrial environments. Its robust construction ensures reliable performance in applications requiring precise position and speed feedback.

Technical details

• Connector Type: Female, Straight
• Connector Series: M23
• Number of Pins: 16
• Application: Encoder feedback
• Housing Material: Typically robust industrial-grade plastic or metal alloy (verify with datasheet)
• Contact Material: Typically gold-plated copper alloy for corrosion resistance and conductivity (verify with datasheet)
• Termination Style: Solder or crimp (verify with datasheet)
• Environmental Rating: Often rated for IP67 or IP69K for dust and water ingress protection (verify with datasheet)

Applications & compatibility

This 16-pin M23 connector is commonly employed in servo motor feedback loops for CNC machinery, robotics, and automated assembly lines. It ensures secure and reliable data transfer between encoders and motor drives, critical for maintaining positional accuracy and operational efficiency in automated manufacturing processes.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCC23FDP160S or contact our technical team for cross-reference assistance with compatible Schneider Electric encoder connection solutions.
