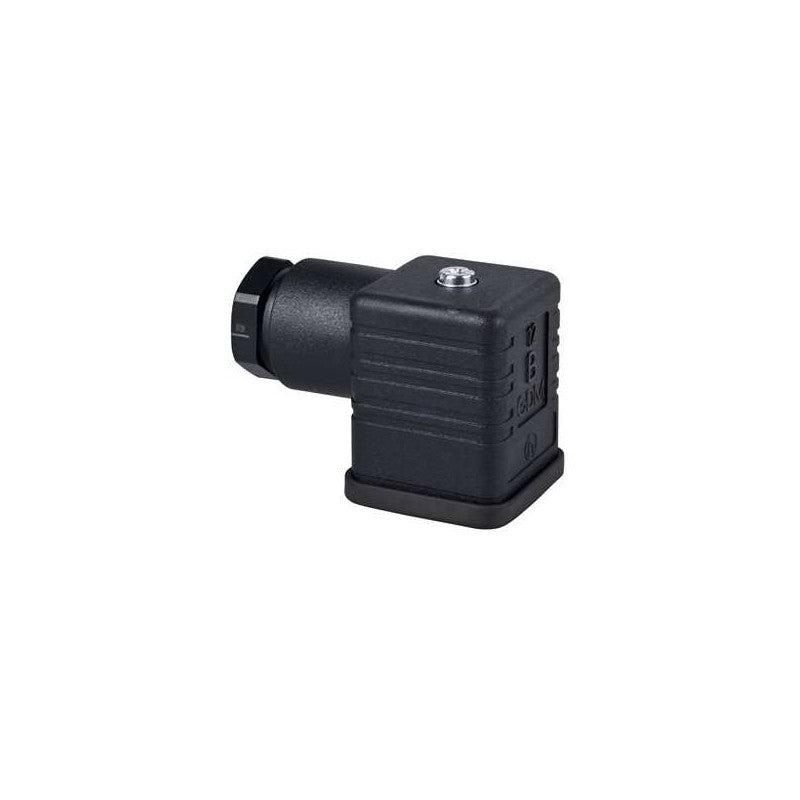

This Schneider Electric connector is designed for industrial control and sensor applications, specifically within the DIN 43650 form factor. It serves as a crucial interface for connecting electrical signals, commonly found in pneumatic valve applications and sensor wiring on automated machinery. The elbowed design facilitates neat cable routing in confined spaces.

Technical details

• Connector Type: Female
• Standard: DIN 43650 Form A
• Number of Pins: 4-pin
• Cable Gland Size: Pg 11
• Configuration: Elbowed (90-degree)
• Housing Material: Typically polyamide or similar industrial-grade plastic (verify with datasheet)
• Contact Material: Typically brass with tin or nickel plating (verify with datasheet)
• Voltage Rating: Consult manufacturer datasheet for specific voltage limits based on application and wiring.
• Current Rating: Consult manufacturer datasheet for specific current limits based on application and wiring.

Applications & compatibility

This connector is widely utilized in machine building, process control, and factory automation environments. It is compatible with a broad range of industrial sensors, actuators, and control devices that employ the DIN 43650 A interface. Common applications include pneumatic valve solenoids, proximity sensors, and other I/O devices on packaging machinery, material handling systems, and assembly lines.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCC43FCP40B or contact our technical team for cross-reference assistance with compatible DIN 43650 A components.
