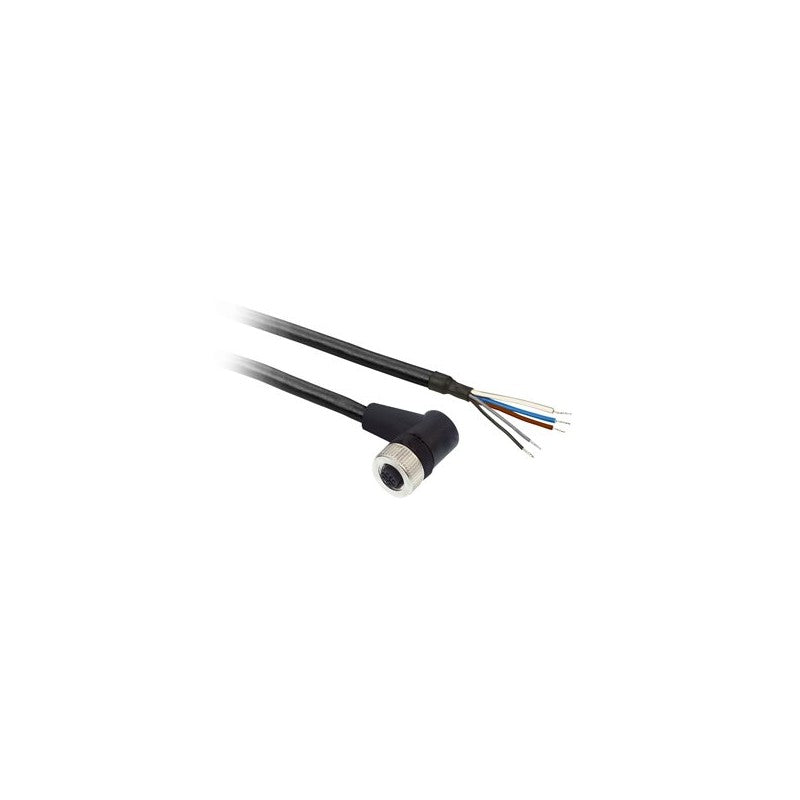

Part of the Schneider Electric XZ series, this pre-wired connector is designed for robust industrial environments. It features an elbowed female M12 connector with 5 pins, suitable for connecting sensors and actuators in automation systems. The integrated PUR cable offers durability and resistance to common industrial fluids.

Technical details

• Series: XZ
• Connector Type: Elbowed Female
• Connector Size: M12
• Number of Pins: 5
• Cable Material: PUR (Polyurethane)
• Cable Length: 20 meters
• Voltage Rating: Verify with manufacturer datasheet (typically 30V or 60V for M12 connectors, but specific rating depends on the full part number and application).
• Current Rating: Verify with manufacturer datasheet (typically 2A or 4A for M12 connectors, but specific rating depends on the full part number and application).

Applications & compatibility

This connector is commonly employed in machine building, robotics, and process control applications where reliable signal transmission is critical. It is ideal for connecting proximity sensors, photoelectric sensors, and other M12-compatible devices to control systems in industries such as automotive manufacturing, food and beverage processing, and material handling.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCP12V12L20 or contact our technical team for cross-reference assistance with compatible Schneider Electric XZ series components.
