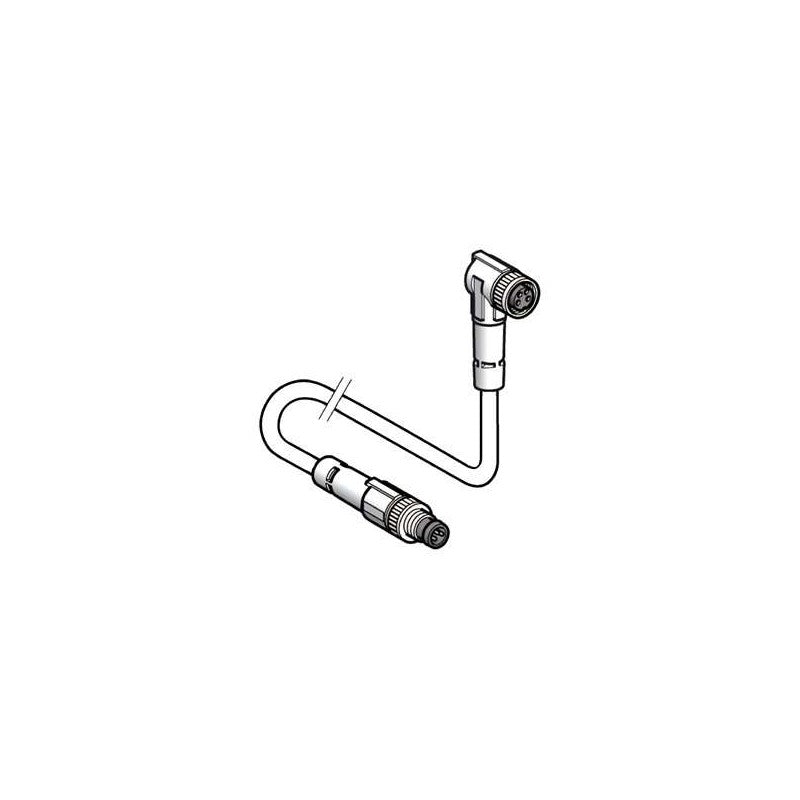

This Schneider Electric XZCR2710037S2 is a jumper cable designed for connecting M8 sensors and actuators within industrial automation systems. It features a male straight M8 3-pin connector on one end and a female elbowed M8 4-pin connector on the other, facilitating flexible routing in confined spaces. The cable is constructed with PUR (Polyurethane) insulation, known for its durability and resistance to oils and chemicals commonly found in industrial environments.

Technical details

• Connector Type 1: M8 Male Straight, 3-pin
• Connector Type 2: M8 Female Elbowed, 4-pin
• Cable Material: PUR (Polyurethane)
• Cable Length: 2 meters
• Series: XZ (Schneider Electric Sensor/Actuator Cabling)
• Pin Configuration: 3-pin to 4-pin
• Environmental Rating: Suitable for industrial environments requiring oil and chemical resistance.
• Termination: Pre-terminated connectors for quick installation.

Applications & compatibility

This jumper cable is suitable for connecting a wide range of M8 sensors and actuators to control systems, PLCs, and I/O modules. Its specific pin configurations suggest compatibility with sensors requiring 3-pin connections (e.g., standard proximity sensors) and actuators or devices needing 4-pin connections (e.g., some types of solenoid valves or encoders). It is commonly found in applications such as packaging machinery, material handling systems, and automated assembly lines where reliable sensor and actuator connectivity is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XZCR2710037S2 or contact our technical team for cross-reference assistance with compatible Schneider Electric XZ series components.
