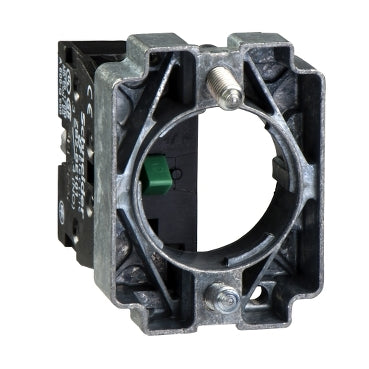

The Schneider Electric ZB2BZ101 is a control button body designed for 22mm diameter panel cutouts. This component serves as the housing for pushbuttons and selector switches within the ZB2 series, a widely adopted range for machine control interfaces. It is engineered to accommodate a single normally open (1NO) contact block, facilitating basic control functions in industrial automation systems.

Technical details

• Series: ZB2
• Mounting Diameter: 22 mm
• Contact Configuration: Designed to house one (1) Normally Open (1NO) contact block.
• Material: Durable plastic construction suitable for industrial environments.
• Actuator Type: Button body, intended for use with compatible push button heads or selector switch levers.
• Environmental Rating: Typically designed for industrial use, though specific IP rating should be verified against manufacturer datasheet.
• Terminal Type: Screw clamp terminals for secure wiring of contact blocks.
• Color: Standard grey or black, common for control station components.

Applications & compatibility

This ZB2BZ101 control button body is commonly integrated into control panels for machine tools, conveyor systems, packaging equipment, and general industrial machinery. It is compatible with Schneider Electric's extensive range of ZB2 series contact blocks and operator heads, allowing for flexible configuration of control stations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZB2BZ101 or contact our technical team for cross-reference assistance with compatible ZB2 series components.
