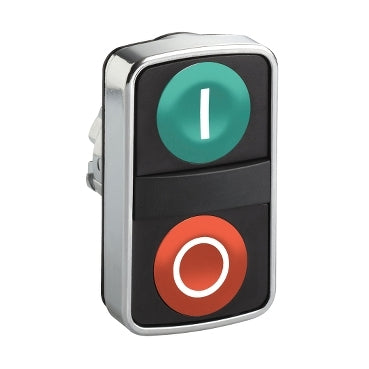

The Schneider Electric ZB4BA8234 is a double-headed pushbutton designed for robust industrial control applications. This component is part of the Harmony XB4 series, a range of modular pushbuttons, selector switches, and pilot lights known for their metal construction and ease of installation. The ZB4BA8234 features a green flush actuator and a red flush actuator, providing distinct visual feedback for operator input on control panels.

Technical details

• Series: Harmony XB4
• Actuator Type: Double-headed pushbutton
• Actuator Colors: Green (flush) and Red (flush)
• Operator Interface: Flush actuators for a low-profile design
• Mounting Diameter: Ø22 mm (standard for Harmony XB4 series)
• Marking: Includes marking for clear identification of function
• Contact Configuration: Requires separate contact blocks (not included) to define electrical function (e.g., momentary, maintained, NO, NC). Buyer must verify compatible contact block part numbers based on application requirements.
• Material: Metal construction for durability in demanding environments.

Applications & compatibility

This pushbutton is suitable for integration into control stations and panels for a wide array of industrial machinery. Common applications include motor control circuits, emergency stop functions (when paired with appropriate contact blocks), and status indication on manufacturing equipment such as packaging machines, assembly lines, and material handling systems. Its Ø22 mm mounting size ensures compatibility with standard control panel cutouts.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZB4BA8234 or contact our technical team for cross-reference assistance with compatible Harmony XB4 components.
