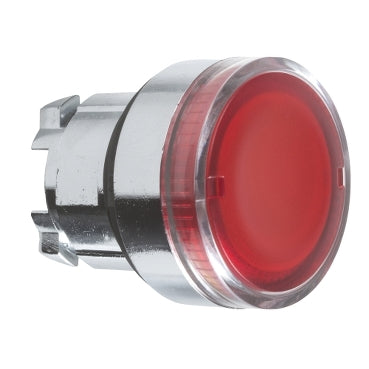

Schneider Electric's ZB4BW34 is a red, flush illuminated pushbutton head designed for Ø22mm panel cutouts. This component is part of the Harmony XB4 series, a robust range of control and signaling units commonly integrated into machine control panels and industrial automation systems. It features a spring return mechanism and is configured for use with a BA9s bulb, providing clear visual indication for operator feedback.

Technical details

• Series: Harmony XB4
• Actuator Type: Pushbutton
• Operator Type: Illuminated Pushbutton Head
• Color: Red
• Lens Shape: Flush
• Mounting Diameter: Ø22 mm
• Actuator Return: Spring Return
• Bulb Type Compatibility: BA9s
• Contact Configuration: Requires separate contact blocks (not included)
• Enclosure Rating: Typically IP65 when properly assembled with compatible components (verify datasheet for specific rating)

Applications & compatibility

This illuminated pushbutton head is suitable for a wide array of industrial control applications, including operator interfaces on control panels for manufacturing equipment, material handling systems, and process control stations. It is designed to integrate seamlessly with other components from the Schneider Electric Harmony XB4 series, ensuring consistent panel aesthetics and reliable functionality in demanding environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZB4BW34 or contact our technical team for cross-reference assistance with compatible Harmony XB4 components.
