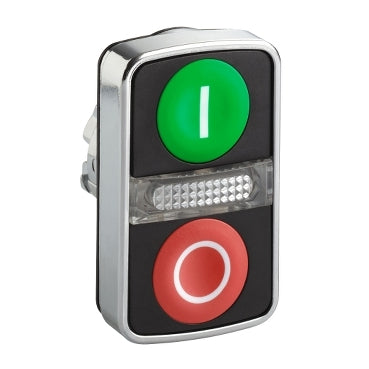

The Schneider Electric ZB4BW7A3741 is a robust illuminated double-headed pushbutton designed for demanding industrial control applications. As part of the Harmony ZB4 series, this component offers reliable operation for panel builders and maintenance engineers. Its dual-head configuration allows for distinct visual feedback and control functions within a single unit, commonly integrated into machine tool interfaces and process control panels.

Technical details

• Series: Harmony ZB4
• Actuator Type: Illuminated Double-Headed Pushbutton
• Head Style: Flush Pushbutton (both heads)
• Color Configuration: Green illuminated head / Red illuminated head
• Operator Type: Momentary (standard for this series unless otherwise specified by suffix)
• Mounting Diameter: 22mm
• Marking: Provided with marking capability
• Voltage Rating: Requires verification against manufacturer datasheet for specific illumination voltage. Typically compatible with 24V, 120V, or 230V AC/DC illumination circuits depending on the specific contact block and transformer used.

Applications & compatibility

This pushbutton is frequently specified for use on control panels for packaging machinery, material handling systems, and assembly lines. Its dual-color illumination is ideal for signaling operational status, alarms, or distinct operational modes in environments where clear visual cues are critical for operator safety and process efficiency.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZB4BW7A3741 or contact our technical team for cross-reference assistance with compatible Harmony ZB4 components.
