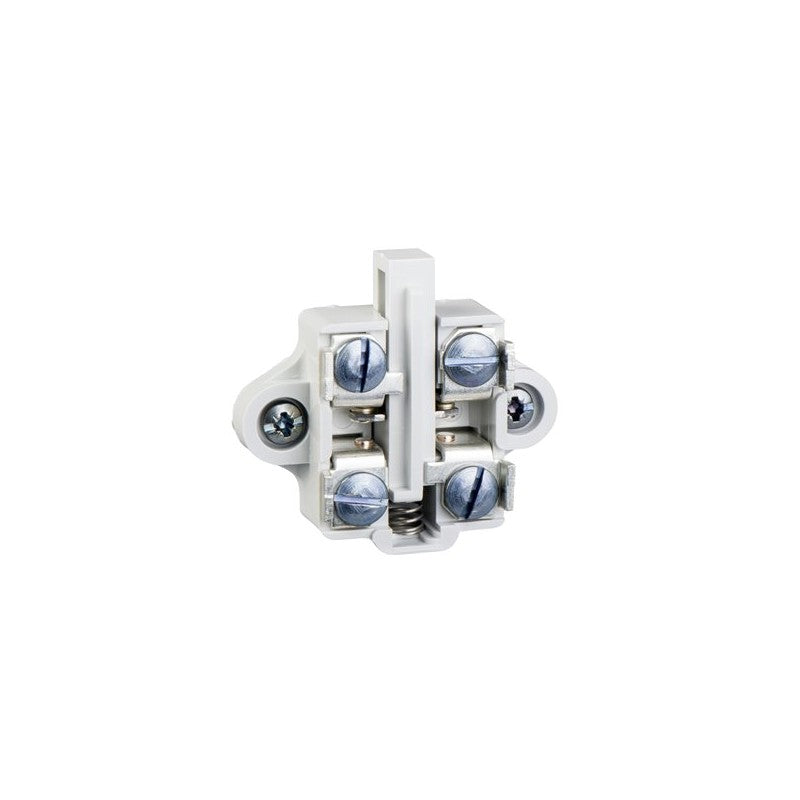

The ZC1AZ11 from Schneider Electric is a contact block designed for use with their extensive range of control and signaling devices. This 1 Changeover (1 C/O) contact block provides a single pole with both normally open (NO) and normally closed (NC) contacts, making it suitable for a variety of control circuit applications where a single switching function is required. It is commonly integrated into control panels for machinery and process equipment.

Technical details

• Contact Configuration: 1 Changeover (1 C/O)
• Contact Type: Single Pole, Double Throw (SPDT)
• Functionality: Provides one set of contacts that switch from normally closed to normally open upon actuation.
• Series Compatibility: Designed for integration with Schneider Electric's Harmony series of control stations and components.
• Mounting Type: Typically front-mounting or snap-on for direct attachment to compatible Schneider Electric operator interfaces.
• Electrical Rating: Specific voltage and current ratings are dependent on the associated actuator and the overall control system design. Buyers should consult the manufacturer's datasheet for precise electrical specifications.
• Actuation Method: Designed to be actuated by compatible Schneider Electric pushbuttons, selector switches, or other control devices.

Applications & compatibility

This ZC1AZ11 contact block is frequently employed in industrial control panels for applications such as motor control circuits, signaling systems, and interlock functions. It is compatible with various Schneider Electric Harmony XB4, XB5, and XB7 series operator interfaces, enabling flexible configuration for packaging machinery, material handling systems, and general automation equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZC1AZ11 or contact our technical team for cross-reference assistance with compatible Schneider Electric control components.
