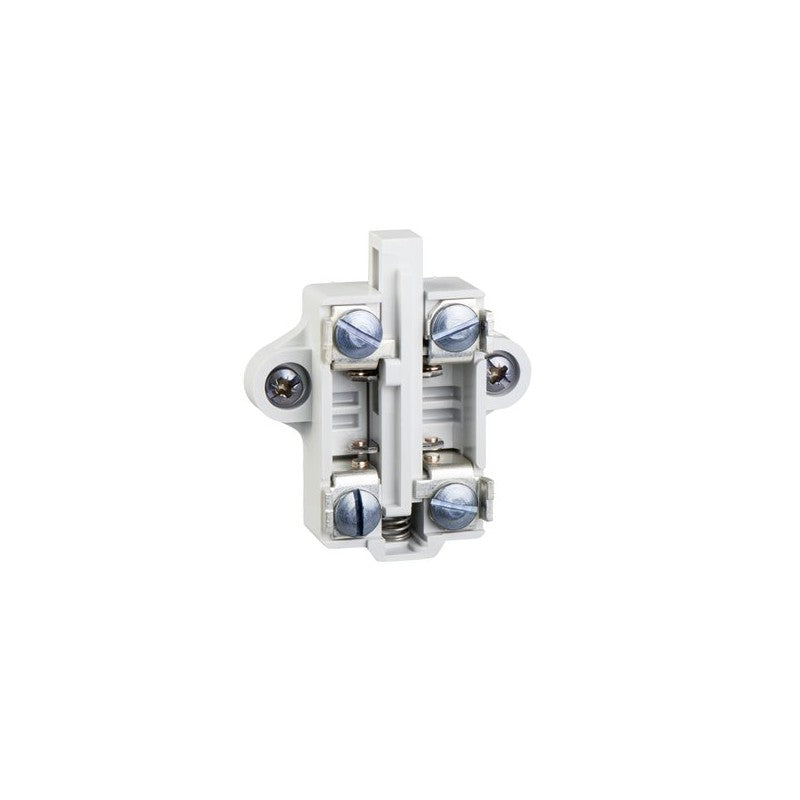

The ZC1AZ15 from Schneider Electric is a contact block designed for use with their Harmony series control stations and pushbuttons. This specific configuration features two normally open (2NO) contacts that operate simultaneously, providing a reliable switching solution for control circuits. It is commonly integrated into machine control panels and operator interfaces for applications requiring direct control of auxiliary functions or pilot duty circuits.

Technical details

• Contact Configuration: 2 Normally Open (2NO)
• Contact Operation: Simultaneous actuation of both contacts
• Series Compatibility: Schneider Electric Harmony ZC series
• Mounting Type: Designed for snap-on mounting to compatible Schneider Electric operator interface components
• Electrical Rating: Refer to the manufacturer's datasheet for specific voltage and current ratings. The ZC1AZ15 is typically used for pilot duty applications.
• Actuation Type: Mechanical, triggered by the associated pushbutton or selector switch mechanism
• Environmental Protection: Designed to meet industry standards for industrial environments; consult datasheet for specific IP ratings.
• Terminal Type: Screw terminals for secure wire connections

Applications & compatibility

This Schneider Electric ZC1AZ15 contact block is suitable for a wide range of industrial automation applications, including control panels for manufacturing equipment, material handling systems, and process control stations. It is compatible with various Schneider Electric Harmony XB4, XB5, and XB7 series pushbuttons, selector switches, and indicator lights, enabling flexible configuration of operator interfaces.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZC1AZ15 or contact our technical team for cross-reference assistance with compatible Harmony series components.
