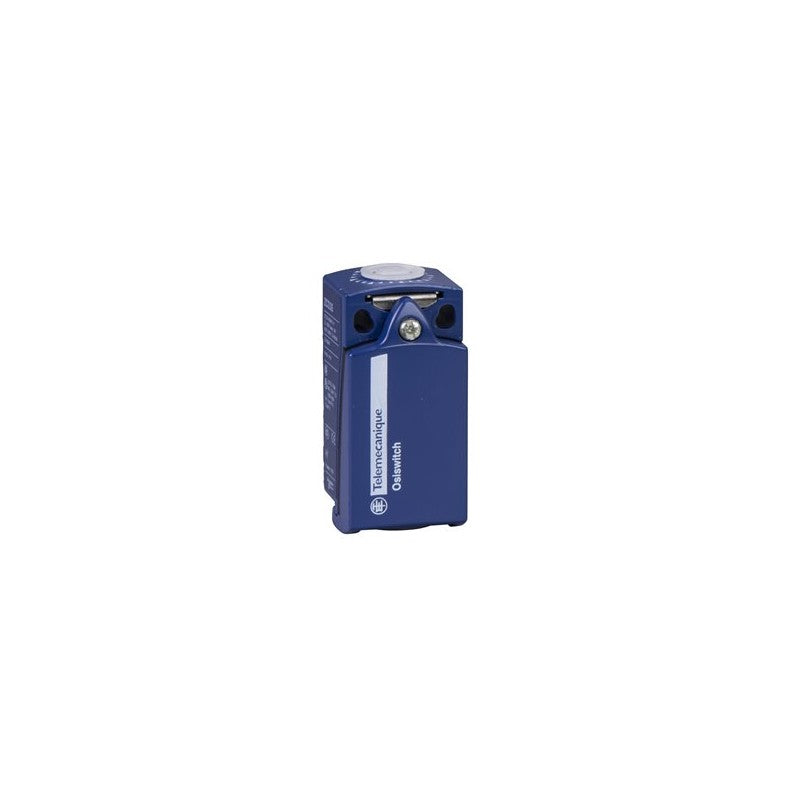

The Schneider Electric ZCD27 is a compact limit switch body from the ZCD series, designed for robust industrial applications. This specific model features a 2NC (normally closed) contact configuration and operates with a slow-break mechanism, ensuring reliable switching operations in demanding environments. It is commonly integrated into machine safety circuits and control systems where precise end-of-travel detection is critical.

Technical details

• Series: ZCD
• Type: Compact Limit Switch Body
• Contact Configuration: 2NC (2 Normally Closed)
• Actuation Type: Slow-break
• Enclosure Rating: Verify against manufacturer datasheet for specific environmental protection ratings (e.g., IP rating).
• Electrical Rating: Voltage and current ratings are dependent on the specific head and actuator used in conjunction with this body. Consult the manufacturer's datasheet for detailed specifications.
• Mounting: Standard mounting dimensions for ZCD series bodies. Refer to the datasheet for precise measurements.
• Operating Temperature Range: Consult the manufacturer's datasheet for the specified operating temperature range.

Applications & compatibility

This ZCD series limit switch body is suitable for integration into a wide array of industrial automation systems. It finds common application in machine tool positioning, conveyor belt end-stop detection, safety interlocks on guard doors, and as an end-of-travel sensor in robotic cells. Its compact form factor allows for easy installation in space-constrained areas within packaging machinery, material handling equipment, and assembly lines.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZCD27 or contact our technical team for cross-reference assistance with compatible Schneider Electric ZCD components.
