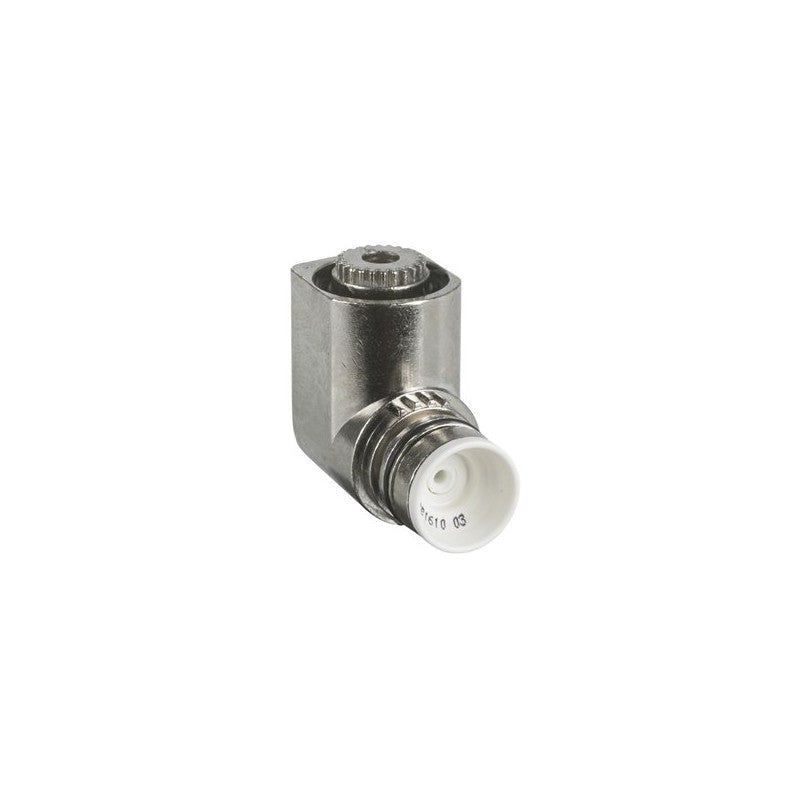

The Schneider Electric ZCE09 is a limit switch head designed for robust industrial environments. As part of the ZCE series, this component is engineered for reliable actuation in demanding applications. It features a design that allows for stay-put functionality, enabling left or right actuation without the need for a separate lever stay. This makes it suitable for integration into various control systems where precise limit sensing is critical.

Technical details

• Series: ZCE
• Actuation Type: Stay-put, left or right actuation
• Lever Included: No lever included; designed for use with compatible levers (verify lever compatibility with manufacturer datasheet)
• Head Style: Limit switch head
• Mounting: Standard mounting for ZCE series heads (verify mounting dimensions and compatibility with manufacturer datasheet)
• Enclosure Rating: Typically designed for industrial environments; specific IP rating and NEMA rating should be verified against the manufacturer's datasheet.
• Electrical Specifications: Voltage and current ratings are dependent on the associated switch body and lever mechanism. Please consult the manufacturer's datasheet for specific electrical capabilities.
• Operating Temperature Range: Consult the manufacturer's datasheet for specific operating temperature limits.

Applications & compatibility

This Schneider Electric ZCE09 limit switch head is commonly employed in automated machinery and control panels across various industries. It is ideal for applications requiring positive confirmation of mechanical limits, such as on packaging lines, material handling equipment, or machine tool positioning systems. Ensure compatibility with your existing switch body and control system by referencing the manufacturer's technical documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZCE09 or contact our technical team for cross-reference assistance with compatible ZCE series components.
