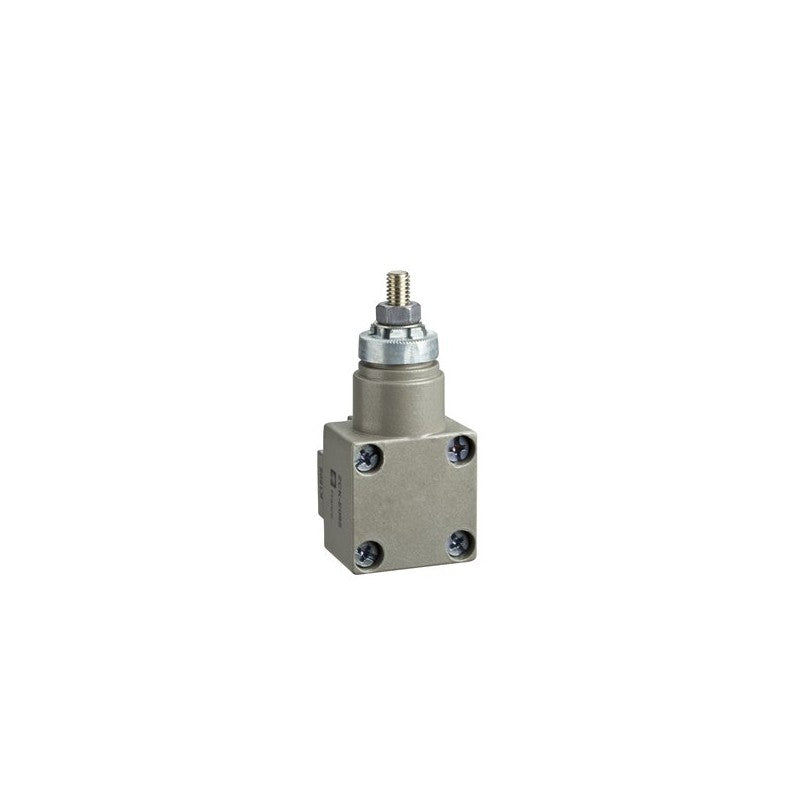

The Schneider Electric ZCKE09 is a limit switch head designed for robust industrial environments. As part of the ZCKE series, this component is engineered for precise position detection and control within automated systems. It features a configuration without a lever, allowing for direct actuation by machine elements or actuators.

Technical details

• Series: ZCKE
• Actuation Type: Leverless, suitable for direct contact actuation
• Actuation Direction: Designed for left and right actuation
• Stay Put Functionality: Incorporates a stay-put mechanism, meaning the switch maintains its state after actuation until reset
• Switching Element: Limit switch head
• Compatibility: Designed to interface with compatible Schneider Electric limit switch bodies and actuators. Specific body and actuator compatibility should be verified against manufacturer datasheets.
• Environmental Rating: Typically designed for industrial environments, though specific IP or NEMA ratings should be confirmed via manufacturer documentation.
• Electrical Specifications: Voltage and current ratings are dependent on the associated switch body and are not specified by the head alone. Refer to the complete switch assembly datasheet for detailed electrical parameters.

Applications & compatibility

This limit switch head is commonly employed in applications requiring reliable end-of-travel detection or position sensing on moving machine parts. It is suitable for use in automated manufacturing lines, material handling equipment, packaging machinery, and machine tools where precise control signals are critical for operational sequencing.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZCKE09 or contact our technical team for cross-reference assistance with compatible Schneider Electric limit switch components.
