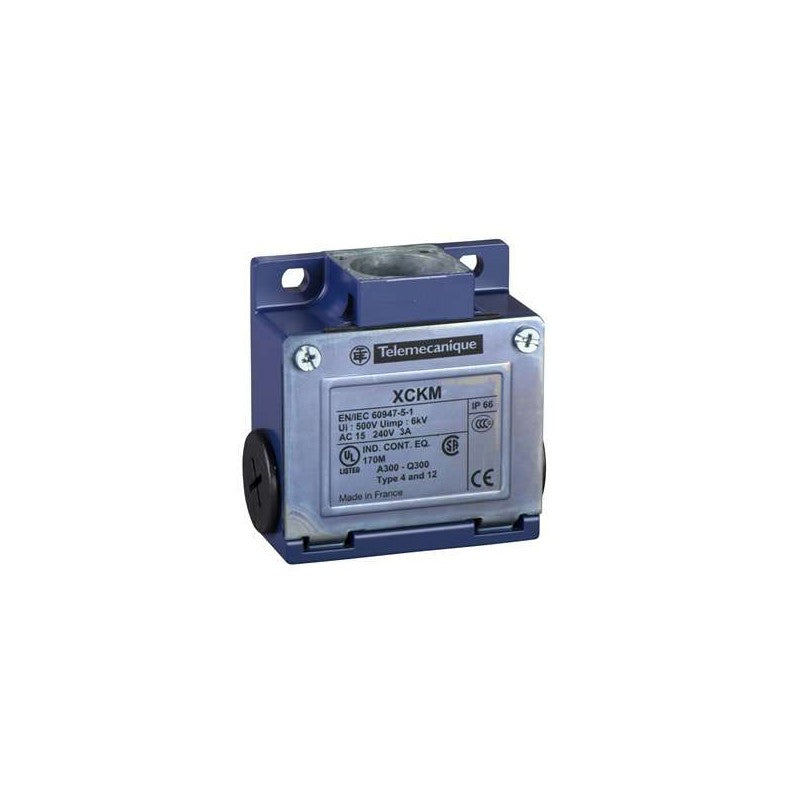

The Schneider Electric ZCKM1H29 is a limit switch body from the ZCKM series, designed for robust industrial environments. This component features a snap-action mechanism and is configured with one normally closed (NC) and one normally open (NO) contact. Its M20 threaded entry facilitates straightforward wiring and mounting in control panels and machinery.

Technical details

• Series: ZCKM
• Contact Configuration: 1 NC + 1 NO
• Actuation Type: Snap Action
• Conduit Entry: M20 threaded
• Switching Function: Momentary
• Body Material: Durable thermoplastic construction for resistance to oils and chemicals.
• Operating Temperature Range: Typically -25°C to +70°C (verify with manufacturer datasheet for precise range).
• Enclosure Rating: Designed to meet IP65 standards for dust and water ingress protection (verify with manufacturer datasheet).

Applications & compatibility

This limit switch body is commonly employed in machine tool applications, material handling systems, and automated assembly lines. It serves as a critical component for detecting the position of moving machine parts, signaling end-of-travel limits, or confirming the presence of an object in automated processes. Its versatile contact configuration makes it suitable for a wide range of control logic requirements.
