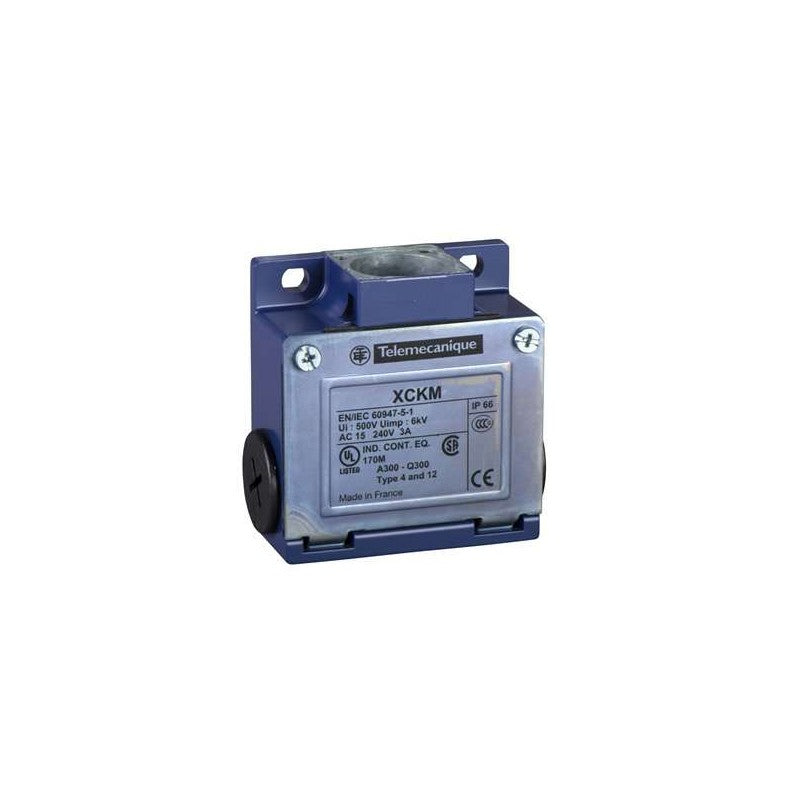

The Schneider Electric ZCKMD37H29 is a limit switch body from the ZCKM series, designed for robust industrial environments. This component features a specific contact configuration of 2 normally closed (NC) and 1 normally open (NO) contacts, utilizing a slow-break mechanism. It is engineered for integration into control systems requiring precise position sensing and reliable switching operations.

Technical details

• Series: ZCKM
• Contact Configuration: 2 NC + 1 NO
• Switching Action: Slow-break
• Conduit Entry Size: M20
• Actuator Type: Body only (actuator head sold separately)
• Enclosure Material: Typically metal for durability in industrial settings (verify with datasheet for exact material)
• Operating Temperature Range: Consult manufacturer datasheet for specific environmental ratings
• Electrical Rating: Refer to the ZCKM series datasheet for specific voltage and current ratings compatible with the 2NC+1NO configuration

Applications & compatibility

This ZCKM series limit switch body is commonly employed in automated machinery and control panels across various industries. Applications include positioning feedback on machine tools, end-of-travel detection on actuators, and safety interlocks in packaging lines, material handling systems, and assembly equipment. Ensure compatibility with appropriate ZCKM series actuator heads and control circuitry.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ZCKMD37H29 or contact our technical team for cross-reference assistance with compatible ZCKM series components.
